Trailers
These Standard Tandem Dump Trailers are for off road use. They have steel floors, implement rims and 9.5L x 15 tires and tubes, hydraulic hoses to tractor, clevis hitch no brakes. The Standard with Deluxe Trailers have 8 bolt hubs and white spoke rims with 275 x 16" "E" rated tires, leaf spring cushion axles, hydraulic hoses & couplers, and electric brakes. Then the Optional Equipment includes it's own electric brakes on two axles, electric hydraulic systems with deep cycle battery and box. Two way rear tail gate 8" removable steel side extension pintle hitch, and ramps available.
Tandem Axle Skid Loader Trailer
- Tilt deck for easy loading.
- 12' long X 74" wide.
- Oscillating tandem axles.
- 6 tie down rings standard.
- Electric brakes.
- Brakes on one axle, 10,000# GVW.
- Brakes on one axle, 12,000# GVW.
Flat Bed Skid Loader Trailer
Model UT-16
- 16' length.
- 82" between the fenders.
- Torflex axles.
- 10,000# or 12,000 GVW available.
- 2" X 5" square tubing frame.
- 3/16" deck plate floor.
- Electric brakes on one or two axles.
- 2 5/16" ball hitch standard.
- Other hitches optional.
.jpg)

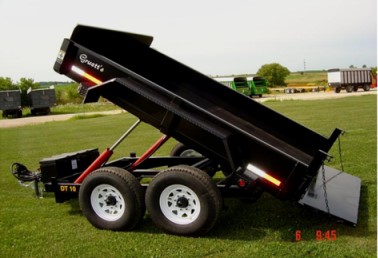

DT-10 Dump Trailer
Standard Trailer
- Is for off road use only.
- 74" wide X 120" long.
- 1/4" steel floor.
- Standard trailer has implement rims and 9.5L X 15 tires and tubes, hydraulic hoses to tractor, clevis hitch no breaks, 14,000# GVW.
.jpg)
Standard With Deluxe Trailers
- 8 bolt hubs and white spoke rims with 275 X 16" "E" rated tires.
- Leaf spring cushion axles.
- Hydraulic hoses and couplers, 2 5/16 ball hitch.
- Electric brakes on one axle, 10,000# GVW.
.jpg)
.jpg)
Optional Equipment
- Electric breaks on two axles, 12,000# GVW.
- Electric hydraulic system with deep cycle battery and battery box.
- Two way rear tail gate.
- 8" removable steel side ext pintle hitch.
- Ramps available.
Single Axle Cattle Trailers
6' X 8' Single Axle Cattle Trailer
- 6' wide X 8' long.
- TorFlex Axle.
- All steel frame with 2" floor.
- 3/4" exterior plywood with 6" oak board on bottom of plywood for sides and front.
- All bolted and painted red or black with white top.
- Lights and fenders as standard equipment.
- Swinging or sliding rear door with ball bearing rollers std.
- Brakes available as an option.
.jpg)
.jpg)
.jpg)
Tandem Axle Cattle Trailers
6'6" Tandem Axle Cattle Trailers
- 6'6" wide and either 12' or 16' long.
- TorFlex cushion axles.
- All steel frame with 2" floor.
- 3/4" exterior plywood with 6" oak board on bottom of plywood for sides and front.
- All bolted and painted red or black with white top.
- Lights, brakes, ball hitch, jack, new radial tires, and fenders as standard equipment.
- Swinging or sliding rear door with ball bearing rollers std.
- Center gate standard on 16'.
- Center gate optional on 12'.
- Escape door optional on 12' or 16'.
- Brakes also available on second axle.
.jpg)
.jpg)
.jpg)
Designs and specifications are subject to change without notice.
101 Main Street, Potter, WI 54160
(920) 853-3516
