Wagons and Gear
Gruett's has three main types of Tandem Axle Wagons that include G24T 12-TON Wagons, G28T 14-TON Wagons, and G36T 16-TON Wagons, and G44T 22-TON Wagons. Some standard features for all wagons include ball-joint steering, wishbone-type tandem axles. As well as welded construction, automotive type steering, tie rods, excellent mud clearance, heavy-duty telescoping pole, and spring assist standard. They are different in the sizes of their thread width, spindles, bolt numbers, and rim sizes. The G44T 22-TON has an exclusive feature like the 4-surge brakes and double webbing type axles for greater strength.
Running Gear: Wheel Rims
- 1454G: (14" X 5" Four Bolt Rim)
- 1455G: (14" X 5" Five Bolt Rim)
- 1466G: (14" X 6" Six Bolt Rim)
- 1486G: (14" X 8" Six Bolt Rim)
- 15106G: (15" X 10" Six Bolt Rim)
- 15108G: (15" X 10" Eight Bolt Rim)
- 1555G: (15" X 5" Five Bolt Rim)
- 1565G: (15" X 6" Five Bolt Rim)
- 1566G: (15" X 6" Six Bolt Rim)
- 15.86G: (15" X 8" Six Bolt Rim)
- 16106G: (16" X 10" Six Bolt Rim)
- 16108G: (16" X 10" Eight Bolt Rim)
- 16555G: (16" X 5.5" Five Bolt Rim)
- 1666G: (16" X 6" Six Bolt Rim)
- 1686G: (16" X 8" Six Bolt Rim)
- 161118G: (16.1" X 8" Eight Bolt Rim)
- 161148G: (16.1" X 14" Eight bolt Rim)
- 16586G: (16.5" X 8" Six Bolt Rim)
- 22.588G: (22.5" X 8" Eight Bolt Rim)
- 22.5138G: (22.5" X 13" Eight Bolt Rim)
6-Bolt Single Axle Wagons
.jpg)
Ball Joint Steering on All Wagons.
-
.jpg)
G14W 7-Ton
74" thread width, 1 3/4" spindles, 6 bolt 6" X 15" rims standard, all welded construction, one piece spindles, bolster stakes at 42" spacing, tow hitch plate standard, grease fittings for proper lubrication, automotive type steering, tie rods located behind a hefty box axle, heavy duty telescoping pole and spring assist standard.
-
.jpg)
G20W 10-Ton
74" thread width, 2" spindles, 6 bolt 8" X 15" rims standard, all welded construction, one piece spindles, bolster stakes at 42" spacing, tow hitch plate standard, grease fittings for proper lubrication, automotive type steering, tie rods located behind a hefty box axle, heavy duty telescoping pole and spring assist standard.
8-Bolt Single Axle Wagons
-
.jpg)
G24W 12-Ton
80" thread width, 2 1/4" spindles, 8 bolt 10" X 15" rims standard, all welded construction, one piece spindles, bolster stakes at 42" spacing, tow hitch plate standard, grease fittings for proper lubrication, automotive type steering, tie rods located behind a hefty box axle, heavy duty telescoping pole and spring assist standard.
-
.jpg)
G30W 15-Ton
80" thread width, 2 3/4" spindles, 8 bolt 10" X 16" rims standard, all welded construction, one piece spindles, bolster stakes at 42" spacing, tow hitch plate standard, grease fittings for proper lubrication, automotive type steering, tie rods located behind a hefty box axle with double webbing for greater strength, heavy duty telescoping pole and spring assist standard.
-
G34W 17-Ton
80" thread width, 3" spindles, 8 bolt 10" X 16" rims standard, all welded construction, one piece spindles, bolster stakes at 42" spacing, tow hitch plate standard, grease fittings for proper lubrication, automotive type steering, tie rods located behind a hefty box axle with double webbing for greater strength, heavy duty telescoping pole and spring assist standard.
.jpg)
Double Webbing on G302 and G342 Wagons.
.jpg)
Ball Joint Steering on All Wagons.

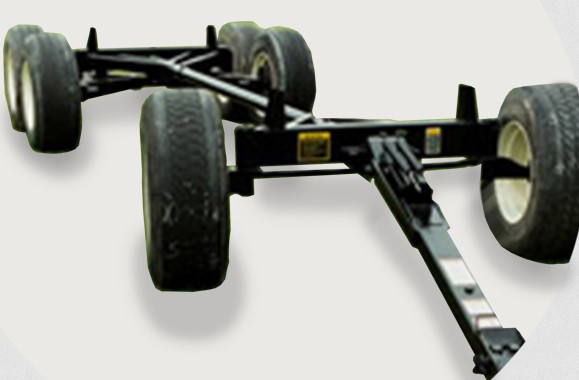

Tandem Axle Wagons
-
.jpg)
G24T 12-Ton
74" thread width, 2" spindles, 6 bolt 10" X 15" rims standard, all welded construction, one piece spindles, bolster stakes at 42" spacing, tow hitch plate standard, grease fittings for proper lubrication, automotive type steering, tie rods located behind a hefty box axle, wishbone type tandem axle for excellent mud clearance and hugs the ground for a smoother ride over rough terrain, heavy duty telescoping pole and spring assist standard.
-
.jpg)
G28T 14-Ton
78" thread width, 2 1/4" spindles, 8 bolt 10" X 15" rims standard, all welded construction, one piece spindles, bolster stakes at 42" spacing, tow hitch plate standard, grease fittings for proper lubrication, automotive type steering, tie rods located behind a hefty box axle, wishbone type tandem axle for excellent mud clearance and hugs the ground for a smoother ride over rough terrain, heavy duty telescoping pole and spring assist standard.
-
.jpg)
G36T 18-Ton
80" thread width, 2 3/4" spindles, 8 bolt 10" X 16" rims standard, all welded construction, one piece spindles, bolster stakes at 42" spacing, tow hitch plate standard, grease fittings for proper lubrication, automotive type steering, tie rods located behind a hefty box axle, double webbing type tandem axle for greater strength, wishbone type axle for excellent mud clearance and hugs the ground for a smoother ride over rough terrain, heavy duty telescoping pole and spring assist standard.
-
.jpg)
Ball Joint Steering on All Wagons.
-
.jpg)
WishBone Type Tandem Axles on All Wagons.
-
.jpg)
Double Webbing on G36T 18-Ton Wagon.
.jpg)

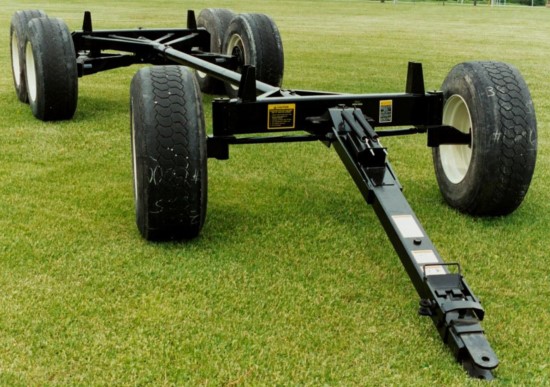

22 Ton Tandem Axle Wagon
G44T 22-Ton
85" thread width, 3" spindles, 8 bolt 11" X 25.5" rims standard, all welded construction, one piece spindles, bolster stakes at 42" spacing, tow hitch plate standard, grease fittings for proper lubrication, automotive type steering, tie rods located behind a hefty box axle, double webbing type tandem for greater strength, wishbone type axle for excellent mud clearance and hugs the ground for a smoother ride over rough terrain, heavy duty telescoping pole and spring assist standard, 4 wheel surge brakes are standard.
-
.jpg)
Ball Joint Steering on All Wagons.
-
.jpg)
Surge Brakes Are Standard.
Designs and specifications are subject to change without notice.
